1. Product-Specific Information
1.1 Specification Parameters

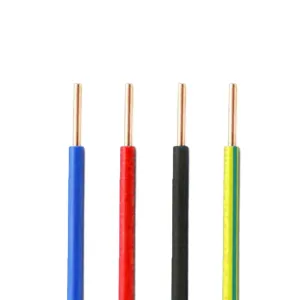

The Ho7V-K Flexible Single
Core Copper Cable is engineered with precise specification parameters to meet the rigorous demands of industrial power transmission and large-scale building wiring. At the core of its electrical specifications is a rated voltage of 450/750V, a dual-value rating that defines its operational range: 450V for phase-to-phase voltage in three-phase systems and 750V for phase-to-earth voltage. This rating aligns with the medium-low voltage requirements of most industrial facilities (e.g., manufacturing plants, industrial parks) and large buildings (e.g., commercial complexes, high-rises), ensuring compatibility with standard power distribution systems and stable performance during voltage fluctuations common in such environments.
Conductor specifications are standardized across three cross-sectional areas: 25mm², 35mm², and 50mm², each calibrated to deliver specific current-carrying capacities. The 25mm² conductor supports a maximum continuous current of 85A (at 30℃ ambient temperature), the 35mm² variant handles up to 110A, and the 50mm² option reaches 140A—all values compliant with IEC 60364 standards for current-carrying capacity. These capacities are determined through thermal testing, where conductors are subjected to continuous current flow while monitoring temperature rise; the maximum temperature rise is limited to 70K above ambient, preventing overheating and insulation degradation.
The conductor itself is constructed from high-purity electrolytic copper with a minimum purity of 99.95%, ensuring low electrical resistivity (≤1.72×10⁻⁸ Ω·m at 20℃). This low resistivity minimizes power loss during transmission, a critical factor for industrial applications where long cable runs (often 50m to 200m) are common. The conductor’s stranding pattern (for
Flexibility) follows IEC 60228 Class 5, which specifies a high number of fine
Copper Strands twisted in a helical pattern—typically 50 strands of 0.8mm diameter for 25mm², 65 strands of 0.8mm for 35mm², and 84 strands of 0.8mm for 50mm². This stranding design balances flexibility and structural integrity, with a minimum bend radius of 6 times the cable’s outer diameter (OD) for fixed installation and 12 times the OD for dynamic bending (e.g., near vibrating machinery).
Insulation parameters are equally stringent. The insulation layer, a key component of the Ho7V-K designation, is made of cross-linked polyethylene (XLPE) or a high-grade PVC compound (depending on specific variants), with a minimum thickness of 1.2mm for 25mm², 1.4mm for 35mm², and 1.6mm for 50mm². This thickness is verified via laser gauging during production to ensure uniform coverage. The insulation’s dielectric strength is tested to ≥20kV/mm, confirming its ability to withstand the 450/750V rated voltage without breakdown. Additionally, the insulation exhibits a temperature resistance range of -20℃ to 90℃ for continuous operation, with short-term tolerance up to 130℃ (for 1 hour) during fault conditions—critical for industrial environments with variable temperatures.
Mechanical parameters further define the cable’s durability. Tensile strength tests confirm the conductor can withstand a minimum pull force of 300N (25mm²), 400N (35mm²), and 500N (50mm²) without breaking, ensuring resistance to damage during installation. The insulation’s abrasion resistance is measured using a Taber abrasion tester, with no conductor exposure allowed after 200 cycles of abrasion with a 1kg load—essential for withstanding friction in industrial conduits or during building construction. The cable’s overall outer diameter ranges from 8.5mm (25mm²) to 12.2mm (50mm²), optimized for compatibility with standard industrial and building conduits (20mm to 32mm inner diameter).
1.2 Feature Uses
The Ho7V-K cable’s features are tailored to address the unique challenges of industrial and building environments, making it a versatile solution across diverse scenarios. A defining feature is its exceptional flexibility, derived from the Class 5
Stranded Conductor design and flexible
Insulation Material. Unlike rigid single-
Core Cables, which crack or kink when bent, the Ho7V-K’s stranded structure allows it to bend around obstacles (e.g., industrial machinery frames, building beams) and navigate narrow spaces (e.g., between wall studs, inside equipment enclosures) without conductor damage. This flexibility also enables installation in dynamic environments, such as near vibrating motors or conveyor belts, where
Rigid Cables would fail prematurely due to fatigue.
Another core feature is its high current-carrying capacity, enabled by the large cross-sectional areas (25mm² to 50mm²) and high-purity
Copper Conductor. This capacity allows the cable to power high-load industrial equipment—such as heavy-duty motors, heating systems, and hydraulic pumps—that require continuous high-power input. In building applications, it supports main distribution circuits, where large volumes of power must be transmitted from the central 配电室 to sub-circuits across multiple floors, eliminating the need for parallel cabling and reducing installation complexity.
The insulation layer’s multi-functional protection is a key advantage. Its high dielectric strength prevents 漏电 (electric leakage) even in humid or dusty industrial environments, while the temperature resistance ensures performance in extreme conditions—from cold warehouse freezers (-20℃) to hot factory workshops (90℃). The insulation also exhibits oil and
Chemical Resistance, withstanding exposure to mineral oils, lubricants, and mild solvents common in industrial settings; this prevents insulation degradation and extends the cable’s service life. For variants using XLPE insulation, additional resistance to UV radiation allows limited outdoor use (e.g., building exteriors under eaves), expanding application scope.
In terms of uses, the cable’s versatility spans industrial and building sectors. In industrial settings, it is deployed for:
Power Distribution: Connecting main switchboards to industrial machinery, production line power hubs, and auxiliary equipment (e.g., compressors, fans).
Heavy Machinery Wiring: Internal Wiring for construction equipment (e.g., cranes, excavators) and manufacturing machinery (e.g., lathes, injection molding machines), where flexibility and vibration resistance are critical.
In building applications, its uses include:
High-Load Zones: Wiring for areas with high power demand, such as hotel kitchens (with commercial ovens and refrigerators), shopping mall food courts, and office server rooms.
Specialized Areas: Underground garage power supply (for lighting, EV charging stations) and equipment rooms (housing HVAC systems, water pumps), where durability and moisture resistance are essential.
The 100m minimum order quantity (MOQ) is a practical feature that balances project needs. It accommodates small-to-medium industrial projects (e.g., a workshop expansion) or building renovations (e.g., upgrading a hotel’s electrical system) by avoiding excessive material waste, while also supporting large-scale orders (e.g., a new manufacturing plant) through bulk pricing options.
1.3 Material and Style
The conductor of the Ho7V-K cable is crafted from high-purity electrolytic copper, sourced from certified suppliers to ensure a minimum purity of 99.95%. This high purity is achieved through electrolytic refining, a process that removes impurities (e.g., iron, oxygen, sulfur) that would increase electrical resistance or cause conductor embrittlement. The refined copper is cast into continuous rods (8mm diameter) using a vertical continuous casting method, which minimizes internal defects and ensures uniform grain structure.
These rods are then drawn into fine strands using wire-drawing machines equipped with diamond dies. The drawing process is conducted at a controlled temperature (250℃ to 300℃) to maintain copper ductility, with intermediate annealing steps to relieve internal stresses. Annealing occurs in a nitrogen-filled furnace at 450℃ to 550℃, which softens the copper and enhances its flexibility—critical for the Class 5 stranded structure. The strands are then twisted together in a stranding machine at a precise pitch (15mm to 20mm, depending on conductor size) to form a compact, uniform conductor. This twisting pattern ensures even current distribution across all strands, preventing localized overheating and maximizing current-carrying efficiency.
1.3.2 Insulation Material
The insulation layer is a high-performance material selected for electrical safety, durability, and environmental resistance. Two primary insulation options are available:
Cross-Linked Polyethylene (XLPE): Preferred for industrial applications due to its superior temperature resistance (up to 90℃ continuous) and chemical stability. XLPE is formed by cross-linking polyethylene molecules via electron beam irradiation or chemical cross-linking, creating a three-dimensional molecular structure that enhances thermal and mechanical properties. It exhibits low water absorption (<0.1% after 24-hour immersion) and excellent resistance to oils, acids, and alkalis.
High-Grade PVC: Used in building applications where cost-effectiveness and ease of installation are priorities. The PVC compound is blended with calcium-zinc stabilizers (lead-free, compliant with RoHS) to improve heat resistance, and plasticizers to enhance flexibility. It meets IEC 60811 standards for insulation performance, with a dielectric strength of ≥18kV/mm and good abrasion resistance.
Both insulation types undergo UV stabilization treatment (for variants used in semi-outdoor building areas) and flame-retardant modification, meeting IEC 60332-1 standards for fire safety. This means the insulation self-extinguishes within 30 seconds of removing the ignition source, reducing fire spread risk in industrial or building fires.
1.3.3 Style
The Ho7V-K cable features a functional, industry-standard style optimized for installation efficiency and safety. It has a round cross-section, with the
Stranded Copper Conductor centered within the insulation layer to ensure uniform insulation thickness—critical for consistent electrical performance. The outer surface of the insulation is smooth, reducing friction during conduit threading and preventing snagging on rough surfaces (e.g., concrete, metal edges in industrial facilities).
Color-coding is a key stylistic and functional element, adhering to global standards for easy identification. The insulation is available in standard colors: black (for phase conductors), blue (for neutral conductors), and green-yellow striped (for ground conductors). This color system allows electricians and industrial technicians to quickly distinguish conductor functions, minimizing wiring errors that could lead to equipment damage or electrical hazards. The color pigment is integrated into the insulation material during manufacturing, ensuring it does not fade or peel over time, even with exposure to industrial chemicals or UV light.
The cable is supplied in continuous lengths, with the 100m MOQ typically wound onto large, durable spools or reels. Spools are made of high-density polyethylene (HDPE) or reinforced cardboard, with a central core diameter of 150mm (25mm²/35mm²) or 200mm (50mm²) to fit standard
Industrial Wire unspooling equipment. The spool design includes flanges (100mm to 150mm tall) to prevent the cable from slipping off during storage or installation, and a label panel for clear product identification.
1.4 Production Process
The production of the Ho7V-K
Flexible Single Core Copper Cable involves a series of precision-controlled processes to ensure compliance with IEC standards and consistent quality. The process is divided into five key stages: conductor manufacturing, insulation extrusion, cross-linking (for XLPE variants), quality testing, and spooling.
1.4.1 Conductor Manufacturing
The first stage begins with copper rod preparation. High-purity copper ingots are melted in an induction furnace at 1085℃ and cast into 8mm-diameter continuous rods using vertical continuous casting. These rods are cooled in a water bath to room temperature and inspected for surface defects (e.g., cracks, air bubbles) using ultrasonic testing. Defective rods are recycled to maintain material quality.
Next, the rods are drawn into fine strands. The rod is fed into a multi-pass wire-drawing machine, passing through a sequence of diamond dies with decreasing apertures (from 8mm to 0.8mm). Each drawing pass reduces the rod’s diameter by 10–15%, with intermediate annealing after every 4–5 passes. Annealing is conducted in a nitrogen atmosphere at 450℃–550℃ to relieve internal stresses and restore ductility, ensuring the strands can be twisted without breaking.
Once the strands reach the required diameter (0.8mm), they are fed into a stranding machine. The machine twists the strands into a single core at a controlled pitch (15mm–20mm), with the number of strands varying by conductor size (50 for 25mm², 65 for 35mm², 84 for 50mm²). The stranding process is monitored by laser diameter gauges to ensure the final conductor cross-section meets the specified area (±2% tolerance).
Stranded Conductors are then spooled and prepared for insulation extrusion.
1.4.2 Insulation Extrusion
Insulation extrusion is tailored to the insulation material (XLPE or PVC). For
PVC Insulation:
The molten PVC is forced through a crosshead die that surrounds the conductor, creating a uniform insulation layer. The die size is calibrated to achieve the required thickness (1.2mm–1.6mm), with real-time thickness monitoring via laser scanners.
For XLPE insulation:
After extrusion, the insulated conductor moves to a cross-linking chamber, where it is exposed to electron beam irradiation (10–15 MeV) or heated with high-pressure steam (180℃–200℃) to cross-link the polyethylene molecules. This step enhances thermal and chemical resistance.
1.4.3 Quality Testing
Quality testing is integrated into every production stage to ensure compliance with IEC standards and product specifications.
Conductor tests include:
Insulation tests include:
Final product tests include:
IEC Compliance: Random samples undergo full testing (flame resistance, smoke density, toxic gas emission) at third-party laboratories to confirm compliance with IEC 60227-6 (PVC) or IEC 60502-1 (XLPE).
1.4.4 Spooling and Labeling
After passing all tests, the cable is wound onto 100m spools using a spooling machine. The machine controls winding tension (100N–150N) to ensure even distribution and prevent tangling. Spools are made of HDPE (for industrial durability) or reinforced cardboard (for eco-friendly options), with flanges to secure the cable.
Each spool is labeled with weather-resistant ink, including: product model (Ho7V-K), conductor size (25/35/50mm²), rated voltage (450/750V), insulation material (PVC/XLPE), length (100m), production batch number, manufacturing date, IEC certification mark, and safety warnings (e.g., “For Industrial/Building Use Only,” “Avoid Direct Sunlight for PVC Variants”). The label also includes a QR code linking to the product datasheet and test reports for easy access to technical information.
2. General Product Information
2.1 Packaging
The packaging of the Ho7V-K cable is designed to protect the product during storage, transportation, and on-site handling in industrial and construction environments. Each 100m spool is first wrapped in a layer of 0.2mm-thick polyethylene (PE) film
This film acts as a robust moisture and dust barrier, critical for protecting the cable during storage in industrial warehouses—where humidity levels can fluctuate or dust accumulation is common—and during transportation in open-air trucks or shipping containers. The PE film is heat-sealed at the edges to create a tight seal, preventing water vapor from seeping into the insulation and avoiding dust buildup on the cable’s surface, which could compromise insulation performance or cause friction-related damage during installation.
For retail or small-batch shipments (e.g., to local electrical contractors or building renovation companies), each PE-wrappedpool is placed inside a double-walled corrugated cardbard box. The box is constructed from 7-ply corrugated board, which has a bursting strength of 2000 kPa—sufficient to withstand stacking pressures in delivery vehicles and resist impact during handling. The box dimensions are customized to fit each spool size: 40cm (height) × 25cm (diameter) for 25mm²/35mm² spools, and 45cm (height) × 30cm (diameter) for 50mm² spools. This snug fit minimizes movement inside the box, reducing the risk of spool damage or cable tangling. The box exterior is printed with the same product information as the spool label, plus a barcode for inventory tracking and handling symbols (“Keep Dry,” “Do Not Stack Over 5 Layers”) to guide logistics personnel.
For bulk shipments (e.g., to large manufacturing plants, construction firms, or distributors), multiple spools are secured onto industrial-grade pallets. Pallets are made of either hardwood (for maximum load capacity) or reinforced plastic (for corrosion resistance in humid or coastal regions), measuring 1.2m × 1.0m with a load-bearing capacity of 800kg. Spools are arranged in a square pattern on the pallet, with a maximum of 16 spools (25mm²/35mm²) or 12 spools (50mm²) per pallet, depending on weight. To enhance stability, a layer of non-slip rubber matting is placed between the pallet and the bottom layer of spools, preventing shifting during transit. The entire pallet is then wrapped with 0.3mm-thick stretch film, applied in overlapping layers (50% overlap) to create a rigid, weather-resistant barrier. A cardboard sheet is placed between the stretch film and the spools to prevent the film from adhering to the PE wrapping, ensuring easy removal of individual spools. Each pallet is labeled with a shipping mark that includes the destination address, total number of spools, gross weight (typically 300kg–500kg), and a packing list detailing the quantity of each conductor size (e.g., 8 spools of 25mm², 4 spools of 35mm²).
2.2 Transportation
Transportation of the Ho7V-K cable requires specialized planning to accommodate its industrial-grade specifications and the diverse environments it is shipped to—from urban construction sites to remote industrial parks. The cable is classified as non-hazardous cargo under international regulations (IMDG Code for sea freight, IATA DGR for air freight), simplifying compliance, but it still demands protection from physical damage, extreme temperatures, and moisture.
For land transportation (the primary mode for domestic and cross-border shipments within continents), dedicated heavy-duty trucks are used. These trucks are equipped with enclosed, climate-controlled cargo areas to maintain a temperature range of 5℃–35℃—critical for preserving the insulation’s properties (PVC insulation can soften above 40℃, while XLPE can become brittle below 0℃). The cargo area is also lined with waterproof membranes to prevent rainwater intrusion during transit, and ventilation fans are installed to reduce humidity buildup. Spools or pallets are secured using heavy-duty ratchet straps with load binders, tightened to a tension of 800N for pallets and 300N for individual spools. For pallets, additional wooden bracing is installed around the perimeter to create a rigid frame, preventing lateral movement during sudden stops or turns. For cross-border shipments (e.g., between European countries or North American states), the trucks are equipped with GPS tracking systems and customs documentation holders to facilitate smooth border crossings, reducing delays from paperwork checks.
For sea transportation (used for intercontinental shipments, such as from Asia to Europe or the Americas), the cable is packed into 20-foot or 40-foot refrigerated shipping containers (reefers) set to 15℃–25℃. This temperature control prevents extreme heat or cold in ocean environments—container interiors can reach 60℃ in tropical waters or -10℃ in polar routes. The containers are also fitted with dehumidifiers to maintain a relative humidity of 40%–60%, preventing condensation that could damage the cable’s insulation. Pallets are loaded into the container using forklifts with soft-padding attachments to avoid damaging the spools, and they are arranged with a 10cm gap between pallets to allow air circulation. The container is sealed with a high-security bolt seal, and the exterior is labeled with “Temperature-Controlled Cargo” and “Fragile” markings to alert port handlers to the need for careful treatment.
Air transportation is reserved for urgent orders (e.g., a factory shutdown requiring immediate cable replacement) or small-quantity shipments (below 5 spools). The cable is packed into lightweight, crush-resistant containers made of reinforced plastic, with foam inserts molded to fit the spool shape—this prevents movement and absorbs shocks during air transit. Each container weighs no more than 50kg to meet airline weight restrictions, and the exterior is labeled with “Lightweight Cargo” and “Handle with Care.” Air freight shipments are escorted through airports by the logistics provider to minimize handling time, and they are prioritized for loading and unloading to reduce exposure to extreme temperatures on the tarmac.
Throughout all transportation modes, the manufacturer monitors shipments in real time using a centralized logistics platform. This platform integrates GPS data, temperature/humidity sensors (in climate-controlled transport), and updates from logistics providers to provide customers with live tracking information. If delays occur—such as port congestion, road closures, or equipment breakdowns—the manufacturer’s logistics team proactively notifies the customer and offers solutions, such as rerouting via an alternative carrier or expediting the shipment at no additional cost for urgent orders.
2.3 Shipping
The shipping process for the Ho7V-K cable is designed to be efficient, transparent, and aligned with the needs of industrial and building customers, who often require on-time delivery to avoid project delays. The process begins with order confirmation and progresses through warehouse fulfillment, documentation, dispatch, and delivery follow-up.
Order confirmation starts immediately after the customer places an order, either via the manufacturer’s B2B portal, email, or direct sales contact. The sales team verifies key details within 24 hours: conductor size (25/35/50mm²), quantity (number of 100m spools), insulation type (PVC/XLPE), delivery address, shipping method (land/sea/air), and payment status. If the ordered specifications are in stock at the nearest regional warehouse (e.g., a European warehouse for EU customers), the order is assigned a fulfillment ID; if not, the customer is notified of the lead time (typically 7–10 business days for production and restocking) and given the option to adjust the order or wait for stock.
Warehouse fulfillment begins with inventory retrieval. Warehouse staff use barcode scanners linked to the manufacturer’s ERP system to locate the correct spools, ensuring no mix-ups between conductor sizes or insulation types. Each spool undergoes a pre-shipment inspection: staff check the PE film for tears, verify the label information is legible and accurate, and confirm the spool’s flange is intact (no cracks or warping). For bulk orders, pallets are assembled and stretch-wrapped as detailed in the packaging section, and a physical count is conducted to match the packing list. Any discrepancies (e.g., a missing spool or damaged packaging) are resolved within 48 hours, with replacement spools shipped from backup inventory if needed.
Documentation preparation is critical for international shipments. The manufacturer’s documentation team compiles a comprehensive set of documents, including:
Commercial Invoice: Details the product description, unit price, total value, country of origin, and HS code (for customs classification).
Packing List: Specifies the number of spools, conductor sizes, insulation types, gross/net weight, and pallet count.
Certificate of Conformity (CoC): Confirms the product meets IEC standards and any local certifications (e.g., CE for Europe, UL for North America, SABS for South Africa).
Bill of Lading (BOL) for Sea Freight or Air Waybill (AWB) for Air Freight: Serves as a contract between the manufacturer and carrier, outlining the shipment’s origin, destination, and terms of transport.
Once documentation is finalized, the shipment is dispatched to the selected carrier. The customer receives a shipping confirmation email with a tracking number, a link to the logistics provider’s tracking portal, and an estimated delivery date. For land transport, delivery times range from 2–5 business days (domestic) to 7–14 business days (cross-border). For sea freight, delivery takes 14–30 business days (depending on the route), and for air freight, 3–7 business days.
Delivery and post-delivery support complete the process. Upon arrival at the destination, the carrier contacts the customer to schedule delivery—typically within a 4-hour window to accommodate industrial or construction site schedules. For palletized shipments, the carrier provides lift-gate service to unload the pallet from the truck, and the customer is required to sign a delivery receipt confirming the number of spools received and noting any visible damage. If damage is found, the customer must notify the manufacturer within 48 hours, providing photos of the damaged packaging and cable. The manufacturer then initiates a damage claim with the carrier and arranges for replacement spools to be shipped within 72 hours, minimizing project downtime.
2.4 Samples
The manufacturer offers a targeted sample program for the Ho7V-K cable to support customers in evaluating its performance, flexibility, and compatibility with their specific industrial or building applications before placing large orders. This program is tailored to meet the needs of technical buyers—such as industrial engineers, electrical contractors, and building project managers—who require hands-on assessment of the product’s quality.
Sample request procedures are streamlined for efficiency. Customers can request samples via three official channels:
Online Sample Portal: Accessible through the manufacturer’s website, the portal requires customers to input their company details (name, industry, size), contact information (technical lead name, email, phone), project scope (e.g., “50,000m² manufacturing plant wiring”), and desired sample specifications (conductor size, insulation type, length). Customers can also select additional requirements, such as requesting a copy of the IEC test report or a technical datasheet.
Direct Sales Contact: Customers working with a dedicated sales representative can request samples via email or phone, with the representative handling the paperwork and follow-up.
Authorized Distributors: Local distributors can provide samples from their inventory for urgent requests, often delivering within 24–48 hours for regional customers.
Sample specifications are designed to be representative of the full-length product. Each sample is a 2-meter length of the requested cable (25/35/50mm², PVC/XLPE), allowing customers to conduct comprehensive tests:
Each sample is accompanied by a “Technical Evaluation Kit,” which includes:
A copy of the third-party IEC compliance certificate, including test results for flame resistance, chemical resistance, and thermal aging.
A step-by-step guide to evaluating the sample, with recommendations for testing methods relevant to industrial or building applications (e.g., “How to Test Flexibility for Vibrating Machinery Wiring”).
Sample costs and shipping are structured to support business customers. Samples are provided free of charge for customers with a confirmed project scope (e.g., a contractor bidding on an industrial wiring project), with the manufacturer covering all shipping costs. For customers exploring potential future projects, a nominal fee of €50 (or equivalent in local currency) is charged, which is fully refundable if an order of 10 or more spools is placed within 60 days. Samples are shipped via express courier (DHL, FedEx) for international delivery, with a transit time of 3–5 business days, and via local couriers for domestic delivery (1–2 business days). A tracking number is provided to the customer, and the sample is packed in a discrete, unmarked envelope to avoid attracting attention during transit.
Post-sample follow-up is a key part of the program. The manufacturer’s technical team contacts the customer 5–7 days after sample delivery to:
Provide customized technical recommendations, such as selecting the appropriate insulation type for a specific environment (PVC for cost-sensitive building projects, XLPE for high-temperature industrial applications).
2.5 After-sales Service
The after-sales service program for the Ho7V-K cable is designed to support customers throughout the product’s lifecycle—from installation to long-term operation—with a focus on minimizing downtime, resolving technical issues, and ensuring ongoing satisfaction. The program leverages the manufacturer’s global network of technical experts and regional service centers to deliver responsive support.
2.5.1 Technical Support
Technical support is available 24/7 for industrial customers (who often operate around the clock) and during standard business hours (9:00 AM–5:00 PM local time) for building customers. The primary support channel is a dedicated technical hotline, staffed by engineers with 5+ years of experience in industrial and building electrical systems. These engineers are trained to address a range of inquiries, including:
Troubleshooting: Diagnosing issues such as insulation damage, conductor overheating, or voltage drops, and providing step-by-step solutions.
For complex technical issues, the support team offers remote or on-site assistance. Remote support includes virtual meetings via Zoom or Microsoft Teams, where engineers can review installation photos/videos, analyze electrical test data, and provide real-time guidance. On-site support is available for bulk customers or critical projects (e.g., a factory shutdown due to cable failure), with technical representatives dispatched within 24 hours for domestic locations and 48 hours for international locations. These representatives can conduct on-site inspections, demonstrate proper installation techniques, and coordinate with local electricians to resolve issues.
The manufacturer also maintains an online technical resource center, which includes:
Installation Manuals: Detailed guides with 3D diagrams, covering topics such as cable termination, grounding procedures, and compatibility with industrial connectors.
2.5.2 Warranty Coverage
The Ho7V-K cable is backed by a 7-year limited warranty, one of the longest in the industry, reflecting the manufacturer’s confidence in its durability. The warranty covers defects in materials and workmanship for all customers—industrial facilities, building owners, contractors, and distributors—provided the cable is installed and used in accordance with the manufacturer’s guidelines and IEC standards.
Warranty coverage includes:
Insulation Defects: Premature aging (cracking, brittleness) within the warranty period, insulation resistance below 100 MΩ under normal operating conditions, or dielectric breakdown at voltages below 450/750V.
To file a warranty claim, customers must:
Submit a claim form via the manufacturer’s website, including their order number, proof of purchase (sales receipt or invoice), and a detailed description of the defect.
Provide photos or videos of the defective cable, clearly showing the issue (e.g., cracked insulation, exposed conductor, uneven stranding).
Share details of the installation environment (temperature, humidity, application) to confirm compliance with the manufacturer’s guidelines.
The manufacturer’s quality control team reviews the claim within 3 business days. If approved, the customer is offered one of three resolutions:
The warranty does not cover damage caused by:
External factors (e.g., mechanical damage from heavy equipment, chemical exposure to non-compatible substances, rodent chewing).
2.5.3 Repair and Replacement Services
For non-warranty damage, the manufacturer offers flexible repair and replacement services to minimize downtime for customers:
Repair Services: For minor insulation damage (e.g., small scratches or nicks that do not expose the conductor), the manufacturer provides insulation repair kits. Each kit includes high-performance insulation tape (matching the cable’s insulation type—PVC or XLPE), a cleaning solvent to prepare the damaged area, and step-by-step repair instructions. The tape is formulated to meet the same temperature and dielectric strength standards as the original insulation, ensuring the repaired section performs consistently. Technical support engineers are available to guide customers through the repair process via phone or video call.
Replacement Services: For severe damage (e.g., conductor breakage, extensive insulation tears, or water damage), the manufacturer offers discounted replacements. Customers can return the damaged cable to the nearest warehouse, and the manufacturer replaces it with new cable at 40% of the standard retail price. This service is particularly valuable for customers who have partially used a spool and do not want to purchase an entire new 100m Roll.
Preventive Maintenance Program: For long-term industrial customers (e.g., manufacturing plants with ongoing operations), the manufacturer offers an annual preventive maintenance program. A team of engineers visits the customer’s site to inspect the installed Ho7V-K cables, checking for signs of wear (insulation aging, conductor corrosion, or damage from vibration) and recommending proactive replacements for cables approaching the end of their service life. This program helps prevent unexpected failures and extends the overall lifespan of the customer’s electrical system.
2.5.4 Feedback and Continuous Improvement
The manufacturer actively seeks customer feedback to enhance the Ho7V-K cable and its services, recognizing that customer insights are critical for addressing evolving industrial and building needs. Feedback is collected through multiple channels:
Post-Purchase Surveys: Sent to customers 60 days after delivery, these surveys ask about satisfaction with product quality (flexibility, durability, performance), shipping speed, and after-sales support. The survey includes both rating scales and open-ended questions to gather detailed feedback.
Technical Support Feedback: After each technical support interaction, customers are invited to rate the engineer’s expertise, response time, and the effectiveness of the solution provided. This feedback is used to train the support team and improve response processes.
Customer Advisory Board: The manufacturer hosts an annual meeting with key customers (industrial leaders, building developers, distributors) to discuss market trends, emerging challenges (e.g., demand for more eco-friendly insulation), and potential product improvements.
Field Visits: Sales and technical teams conduct regular visits to customer sites to observe the cable’s performance in real-world applications, identify pain points (e.g., difficulty installing in tight industrial machinery), and collect suggestions for design changes.
All feedback is analyzed by a cross-functional team (product development, quality control, sales, support) and used to drive improvements:
Product Improvements: For example, if customers report that the PVC insulation is difficult to strip, the manufacturer may adjust the PVC formulation to improve peelability while maintaining dielectric strength. If industrial customers request higher temperature resistance, the R&D team may develop an XLPE variant with an extended temperature range of -30℃–100℃.
The manufacturer shares an annual “Continuous Improvement Report” with customers, outlining the changes made based on feedback and future product development plans. This transparency builds trust and ensures the Ho7V-K cable remains a leading solution for industrial power and building wiring applications
